Biocompatible

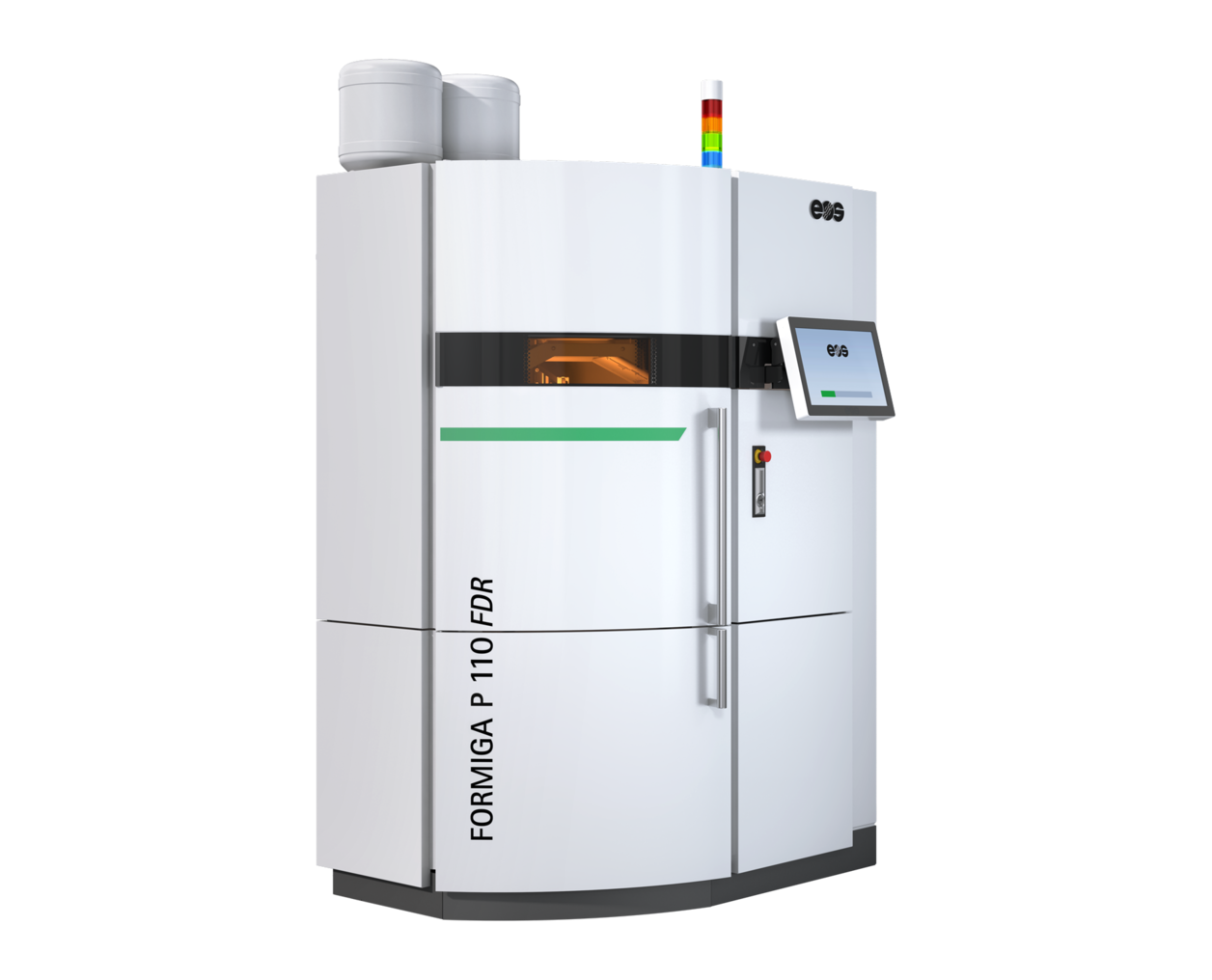

FORMIGA
P 110 FDR
P 110 FDR
The Next Big Thing for Small Parts: Maximum Detail Resolution Enables New Fields of Application
3D Print Filigree and Stable Parts With a Batch Volume of 16.5 Liters
The reputable and reliable industrial 3D printer is now operating with a one-of-a-kind fine laser beam to produce delicate parts and ultra-smooth surfaces to enable new fields of applications. The system has both a small footprint and state-of-the-art work-flow-based software to maximize your shop floor space while bringing your production to the next level.
New Possibilities
With a focus diameter twice as small as existing SLS technologies, the ultra-fine and precise laser beam produces parts with wall thicknesses down to 220 μm.
Excellent Quality
Parts made with the biobased PA 11 material have high impact resistance and elongation at break. A carbon neutral version is also available.
Quick & Easy
Right after unpacking parts are fully functional, leveraging the smooth surface finish created by the ultra-fine laser to save time in post-processing.
Technical Data
FORMIGA
P 110 FDR
| Build Volume | 200 x 250 x 330 mm (7.9 x 9.8 x 13.0 in) |
| Laser Type | CO; 1 x 40 W |
| Scan Speed | up to 5.0 m/s (16.4 ft/s) |
| Power Supply | 1 x 16 A |
| Power Consumption | max. 5.0 kW / typical 3.0 kW |
| Machine Dimensions | 1320 x 1067 x 2204 mm (52.0 x 42.0 x 86.8 in) |
| Recommended Installation Space | min. 3200 x 3500 x 3000 mm (126.0 x 137.8 x 118.1 in) |
| Weight | approx. 610 kg (1345 lbs) |
| Software | EOS SYSTEM SUITE |
Materials & Processes
EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products. Explore below which polymer materials and processes are compatible with the FORMIGA P 110 FDR.
Ductile
Fine Detail Resolution Industrial 3D Printing
Polymer Production: Delicate and Complex, Highly Accurate and Ultra-thin
Fine detail resolution (FDR) technology is the only solution in the 3D printing market that enables production of fine detail without sacrificing quality. The one-of-a-kind CO laser has an ultra-fine beam half the size of standard selective laser sintering (SLS) systems. Combined with PA 11, a remarkably flexible and lightweight polymer material, it produces rigid parts with a high detail resolution and smooth surface finish.
Expand Your AM Knowledge & Skills
Small Things Create Big Differences
On-Demand Webinar
Unleash the Power of Fine Detail Resolution
3D Printing
If your applications require tolerances down to 40 microns and a robust technological approach, FDR is the right solution.
AM Data Preparation Polymer
Training
Optimize production quality and efficiency with our certification data preparation course for polymer applications. Learn how to implement polymer-specific data preparation best practices, recognize main challenges for your applications and exchange ideas with real AM experts
Post Processing Overview Polymer
Training
Learn the post-processing methods and technology to meet both functional and aesthetic needs of polymer AM parts. From smoothing surfaces with precision to coloring and coating, this module empowers you to refine and redefine the possibilities of AM-produced polymer parts.
Software Solutions that Scale to Your Needs
EOS Build
All job and parameter optimization of EOSPRINT with ready-to-use EOS Material Sets - and more - now available as subscription model for efficiency and flexibility in additive manufacturing.
EOS Build offers a new approach to the industry-leading job and process optimization EOSPRINT software with ready-to-use EOS Material Sets, via two new subscription plans.
All EOSPRINT features to optimize build jobs and the process parameters make it a go-to solution for metal additive manufacturing (AM) are now available in the EOS Build and Build+ Plans.
The included high-quality "EOS Material Sets" for all standard materials are designed to deliver excellent results in the first run, saving time and money.
EOS Technical Service
From getting started to sustainable success
We always focus on your success. From a certified start in the 3D printing process to qualified system maintenance and globally available support with a convenient service portal which provides you with information around your machine and service tickets 24/7.
Pick the Service Plan that fits best for your needs and enjoy the option for remote service availabel for many of our solutions. Our EOS SystemCare Program is tailored to your specific requirements.
