Biocompatible
The Solution With the Best ROI in its Catagory

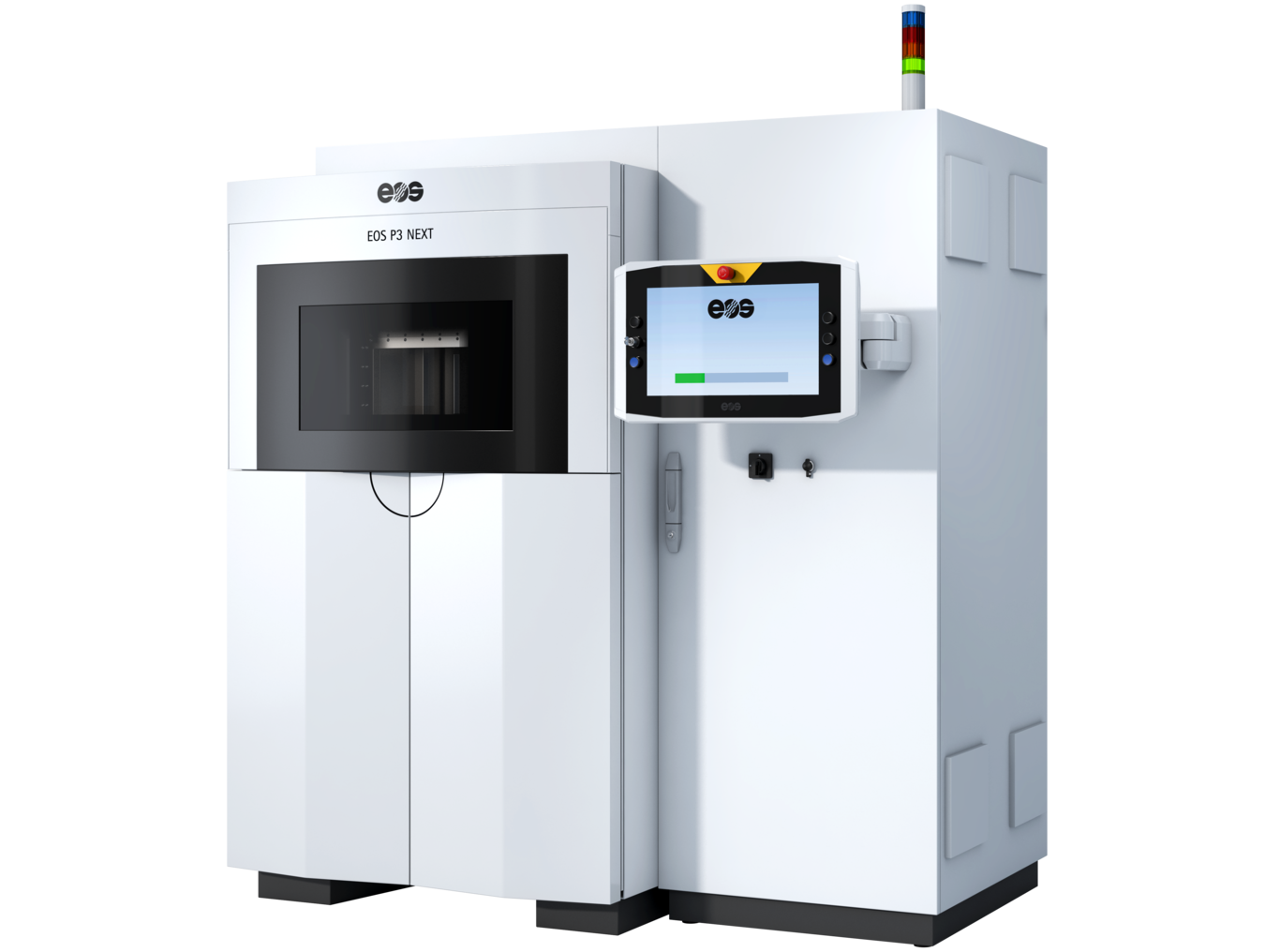

The EOS P3 NEXT is an end-to-end production solution that delivers high productivity at the right cost and excellent part quality from day one. A flexible solution for growing your business.
High Productivity at the Right Cost
An optimized workflow, innovative software, and state-of-the-art hardware features boost machine productivity by 50% and cut costs by 30%. Profit from up to 90% machine availability and double your material efficiency with an impressive 80% reusability rate.
End to End Solution for Production
Unlock efficient data preparation, production management, and analytics with our advanced software. Streamline your workflow with innovative peripheriest, that include part unpacking and finishing as well as material sieving and mixing. Profit from a cost-effective, scalable production with a minimal footprint.
Excellent Quality from Day one
Experience precision-driven quality tailored for every application. Achieve a quick time to market with our optimized and proven parameter sets. Enjoy customizable settings designed to enhance both quality and performance.
33% faster pre-heating time
More homogeneous part quality over job height
FullServiceFlex
Increase your machine availability by up to 90 % with Remote Service
Faster process control
36 % faster build process and more uniform temperature profiles across layers
EOS Build Polymer
Intuitive software for an effortless job preparation
Technical Data
EOS
P3 NEXT
| Build Volume | 340 x 340 x 600 mm (13.4 x 13.4 x 23.6 in) |
| Laser Type | CO₂; 1 x 70 W |
| Presicion Optics | 1 High-speed scanner(s) |
| Scan Speed | up to 6.0 m/s (19.7 ft/s) |
| Focus Diameter | approx. 480 µm (0.01890 in) |
| Power Supply | 1 x 32 A |
| Power Consumption | max. 10.0 kW / typical 2.1 kW |
| Machine Dimensions | 1840 x 1175 x 2100 mm (72.4 x 46.3 x 82.7 in) |
| Recommended Installation Space | min. 4300 x 3900 x 3000 mm (169.3 x 153.5 x 118.1 in) |
| Weight | approx. 1060 kg (2337 lbs) |
Materials & Processes
EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products. Explore below which polymer materials and processes are compatible with the EOS P3 NEXT.
Ductile
Flame Retardant
Multipurpose
